Plastic Wood Plastic Door Board Line

Plastic Wood Plastic Door Board Production Line

Inquire Now

Technical Parameters

Details:

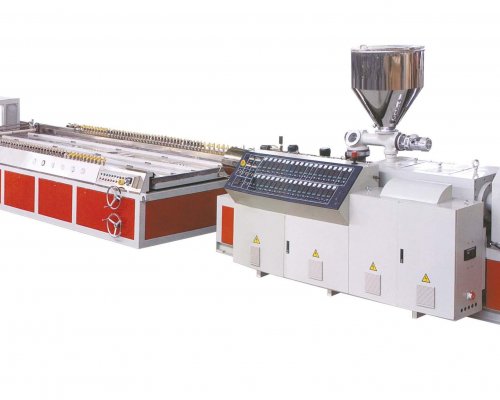

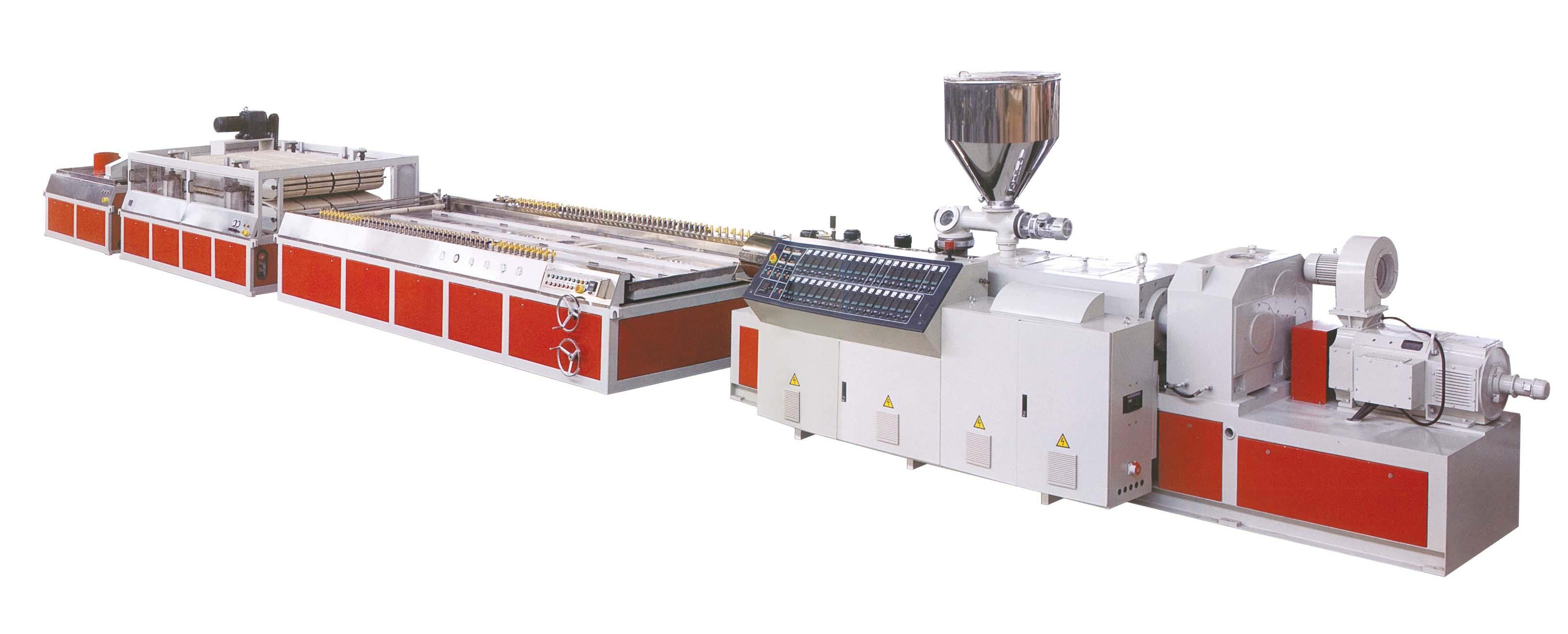

PVC WPC Door Board Production Line is adopted specially designed FX-SJSZ80/156, FX-SJSZ92/188 conical twin screw extruder, moulds for door board, vacuum calibration table, hauling-off machine, cutting machine and stacker.

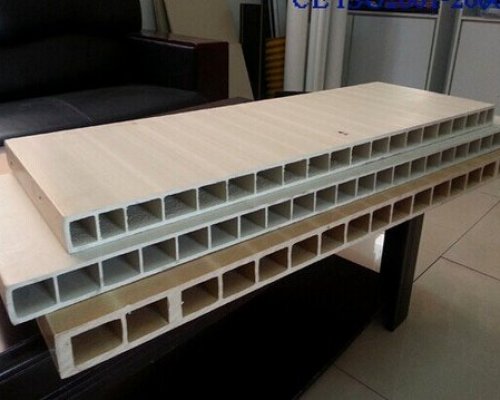

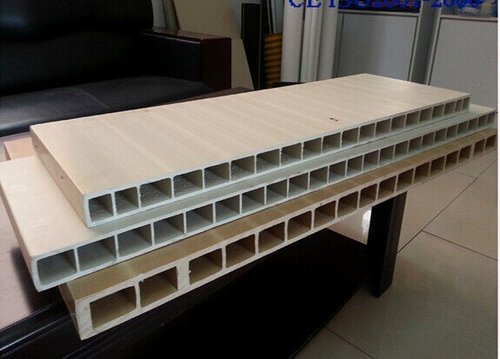

It can be used either inner and out door board, partition, windowsill, or PVC and PVC+wood extruding foaming products.
Final products extruded by this line have the characters of wood and plastic. Not only the special appearance, but also they can have good processing ability as wood, whose proportion can be controlled within 0.6-0.9kg/m3. They can be sawed, drilled and planed by the wood working tools.
Also, the WPC material and products have features of acid resistance, water-proofing, corrosion resisting, anti-aging, static-free, flame retarded, and they can be recycled and used again.
Parameter of PVC WPC Door Board Extruder

Model		FX-SJSZ80/156	FX-SJSZ92/188
Screw diameter	mm	SJSZ80/156	SJSZ92/188
Screw quantity	Piece	2	2
Screw speed	r/min	1-38	1-32.9
Main extruder power	KW	55	110
Heating power(approx)	KW	36	45
Output(approx)	Kg/h	150-350	300-500

Main Technical Specification of PVC WPC door board Production Line

Model		FX-MB600	FX-MB1000
Max product width	mm	600	1000
Draw-off height	mm	150	150
Draw-off force	KN	50	50
Draw-off speed	m/s	0-3	0-2.5
Total power of auxiliary machine	KW	35	40
Cooling water consumption	M3/h	9	12
Compressed air pressure	Mpa	0.6	0.6

Product Application
