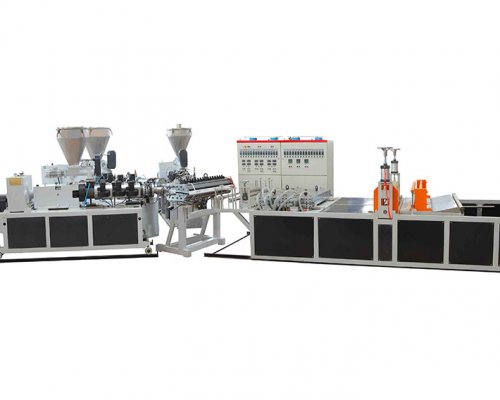

PVC wave tile Extrusion Performance characteristics: • Can choose conical twin screw extruder and different parallel twin-screw extruder; • Provides guidance and recipes raw material purchase; • Low cost and high quality design and production of professional performance; • Single layer or A + B / A + B + C / A + B + A multilayer tile to choose; • Advantages: low noise, anti-corrosion, insulation, waterproof.
Inquire Now
Extruder Model | SJSZ-65/132 | ||

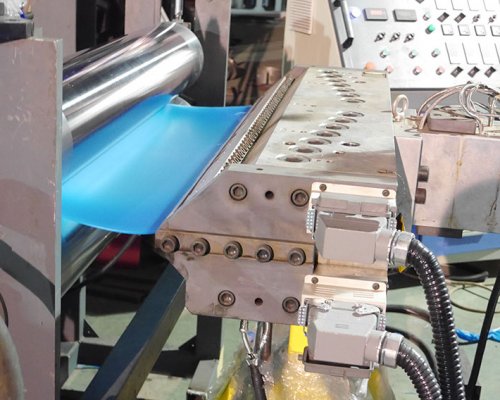

Die | T-type flat mould L=1000mm | Size of cooling mould | haul-off power: |
1000mm 540mm | frequency inverter | ||

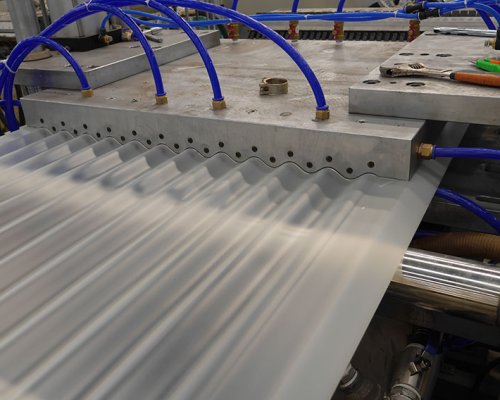

Forming machine | Cooling mode: by water | Cutting mode: Sheer type | |
( pneumatic control) | |||
Big wave | R=15 H=16.5 | Haul-off speed: 0.5-5m/min | Cutting follow-up |
Pitch of waves 63mm | space: 500mm | ||
Small wave | R=9 H=8 | Haul-off roller: 1000mm | Pneumatic pressure: |
Pitch of waves 36mm | 0.4-0.6MPa | ||

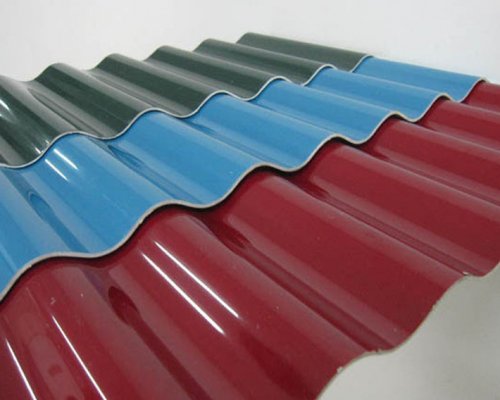

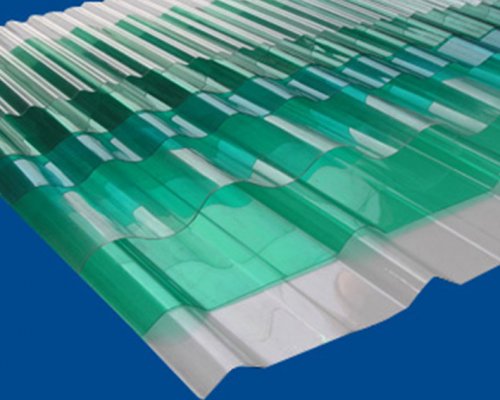

PVC corrugated tile is high-end roof material mainly used in high-class factory building, steel structure factory building. Warehouse, open fair, market passageway, care shed as well as balcony, heat protection shelter with certain heat protection requirements
