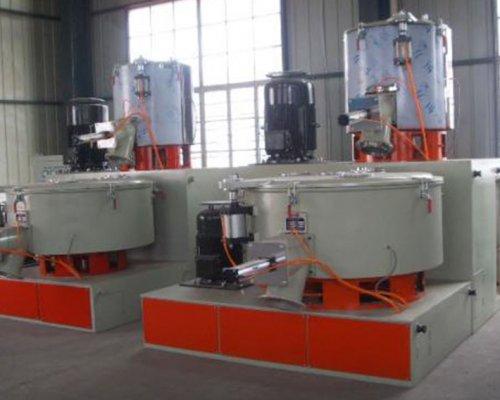

It is used in mixing, stirring,drying, coloring and other procession of all kinds of material in plastics, rubbers, daily chemical and other industries. The discharging mode adopt the temperature automatic control and the manual control.
Model/specs | SRL-Z100/200 mixing | SRL-Z200/500 mixing | SRL-Z300/600 mixing | SRL-Z500/1000 mixing | SRL-Z800/1600 mixing |
Total cubage (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective cubbage (L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
Mixed speed (r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
Heating & cooling manner | electric heating self-friction/water cooling | ||||
Mixed time (min/batch) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor Power (KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
Dimension (L*W*H) (mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 4600*3000*4050 | 5170*3200*4480 |
Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
Mixed material will be used for plastic extrusion.
