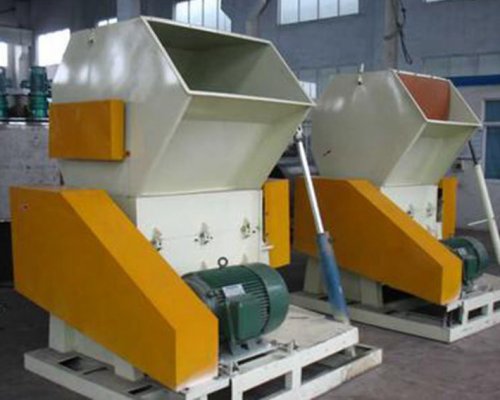

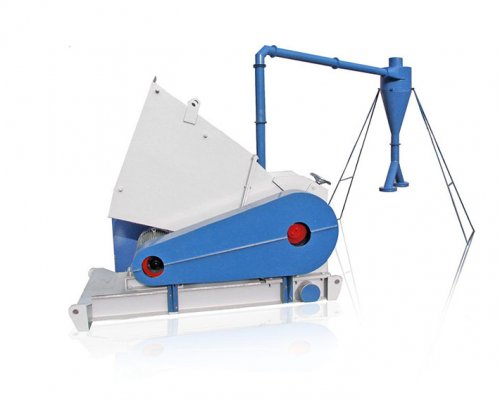

Plastic Crushing Machine

Inquire Now

Technical Parameters

Technical parameter:

-Suitable for recycling of plastic casing ,thin tube plastics,injection and mould sector,bottle plastic and shell plastics,PE,PP,PVC, PET, PC, ABS etc.

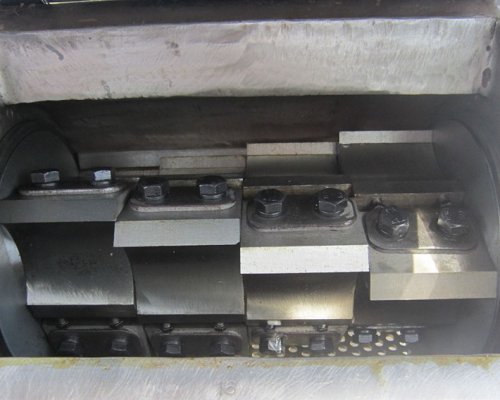

-Easy to operate and simple to replace cutters.Spacious flat blade is suitable to granulate bulky and thin plastics and increases efficiency;
-Installed with electrical safety devices;
-Safety and environmental friendly,with low electricity consumption and long durability.

Model	Motor Power	Crushing Chamber (MM)	Rotary Blade (PCS)	Stationary Blade (PCS)	Crushing Capacity	Dimension	Weight
Model	Motor Power	Crushing Chamber (MM)	Rotary Blade (PCS)	Stationary Blade (PCS)	(kg/h)	(mm)	(kg)
FX-P180	3HP/2.2KW	180*190	9	2	100-150	700780980	120
FX-P265	5HP/4KW	265*220	15	2	150-200	9006601200	280
FX-P300	7.5HP/5.5KW	315*230	9	2	220-300	10807201180	300
FX-P400	10HP/7.5KW	270*410	12	2	400-600	12008501380	420
FX-P500	15HP/11KW	500*300	15	2	460-650	14009801580	750
FX-P600	20HP/15KW	600*320	18	2	600-800	150011001650	850
FX-P700	30HP/22KW	720*400	24	2	800-1000	168013001800	2000
FX-P800	40HP/30KW	805*450	27	4	900-1100	210015002300	2200
FX-P1000	60HP/45KW	1020*650	6	4	1050-1250	225017802450	3000

Product Application

Crushed plastic material will be used again for plastic products, like, pipe, sheet, granule, profile, etc.
