PVC WPC Wall Panel Production Line

PVC WPC Wall Panel Production Line

Inquire Now

Technical Parameters

Details:

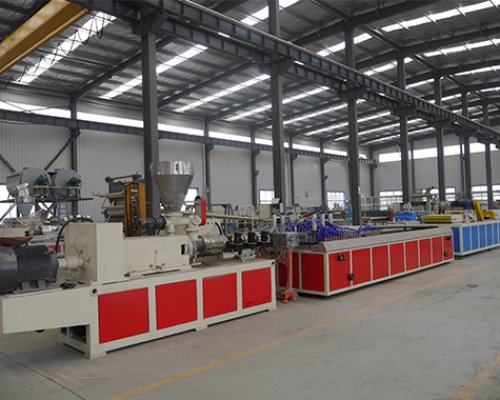

This PVC WPC Panel Production Line consists of one twin screw extruder, vacuum calibration table, traction machine, cutting machine, and stacker. The line achieves superb plasticization, high output and low energy consumption features.
It equipped with ABB inverter, temperature controllers are Japanese brand OMRON/RKC, main electric parts are Simens, Scheneilder, ABB or according to customer preference.

Main parameters:

Model

Panel Width

Machine Output

Material

mm

(kg/h)

FX-SJSZ65

300-400

250

PVC or WPC

FX-SJSZ80

500-600

400

PVC or WPC



Product Application

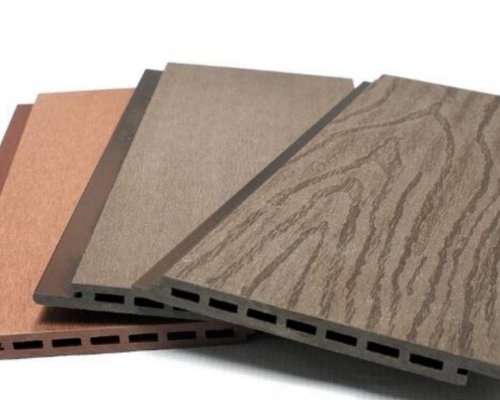

The wall panels are widely used in household, engineering, office buildings, hotels, restaurants, entertainment and so on.
