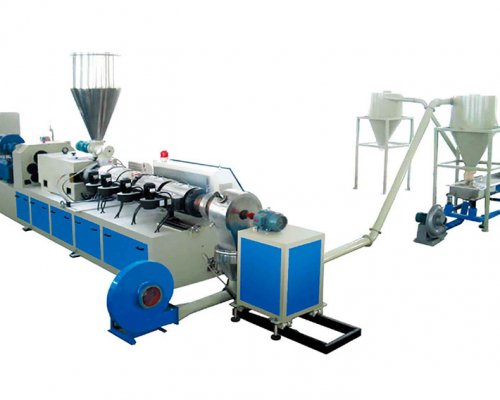

PVC Pelletizing Line

Inquire Now

Technical Parameters

Technical parameter:


PVC  pelletizing machinetor applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.


 Process flow:
Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing

Model

screw diameter (mm)

Capacity (kg/h)

Main motor power                 (kw)

Total power

Line length

(kw)

(m)

SJZ51

51/105

120

18.5

70

12

SJZ65

65/132

200

37

100

14

SJZ80

80/156

350

55

150

16

SJZ92

92/188

600

90

200

18

Product Application

PVC granules will be used for the production of PVC pipe, profile, coating, sheet, etc.
