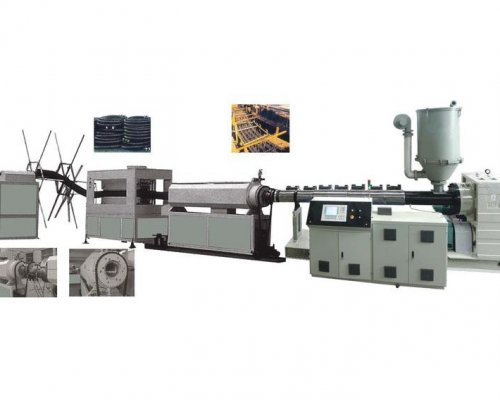

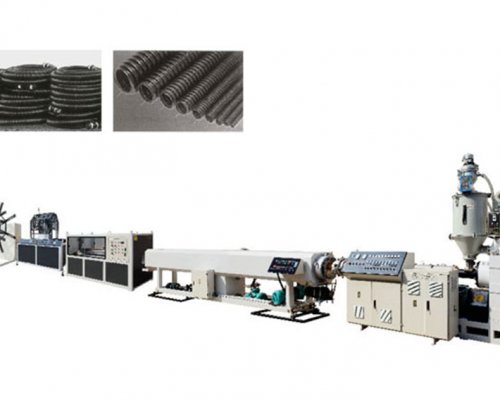

PE Carbon Spiral Reinforced Pipe Line

Single screw extruder especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.

Inquire Now

Technical Parameters

1. Single screw extruder especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.

2. The special detached type compounding screw an die head with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.

3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.

4. All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded, recycled materials can be used in production;

5. Optimum spiral copper sizing sleeve, its entrance carrying pre -cooling and powerful vacuum device to suit for high speed extruding pipe. Stainless steel cooling water trough is three-dimensional regulation, longitudinal moved by motor.

6. High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.



Model

Screw

L/D

Pipe rang

     (mm)

Capacity

    (kg/h)

Total power

(kw)

Line length

         (m)

FX110

SJ65

30:1

50-110

80

55

18

FX160

SJ90

30:1

75-160

250

80

20

FX200

SJ90

30:1

110-200

300

120

32



Product Application

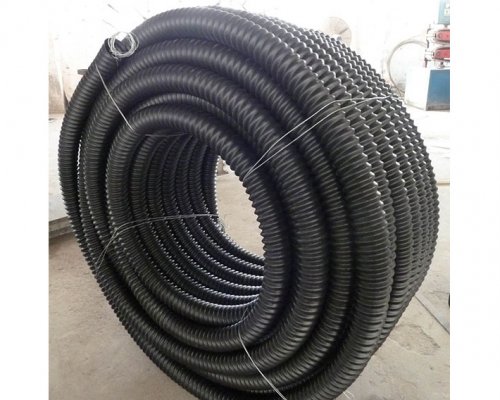

The PE carbon spiral reinforced pipes have the features of high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution, etc. They can be processed and bent into long pipes with various radians.

They are used as protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way, port, etc.
